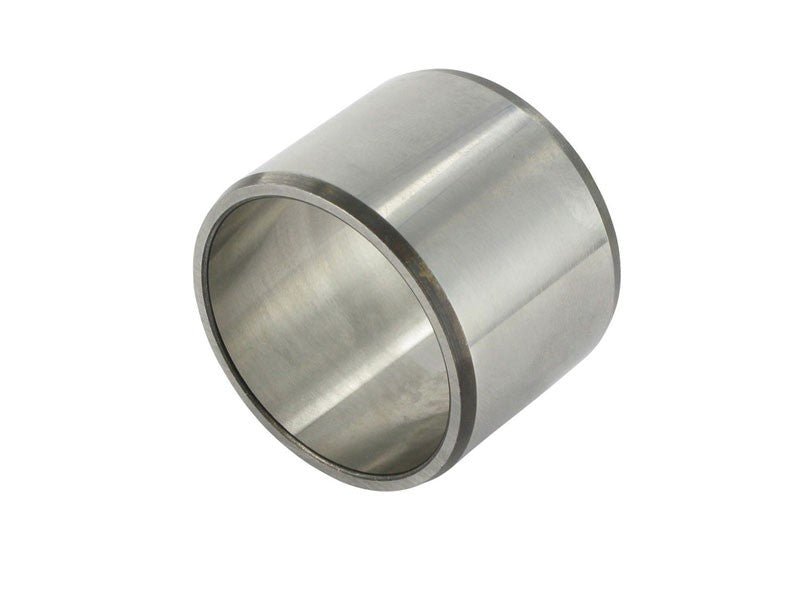

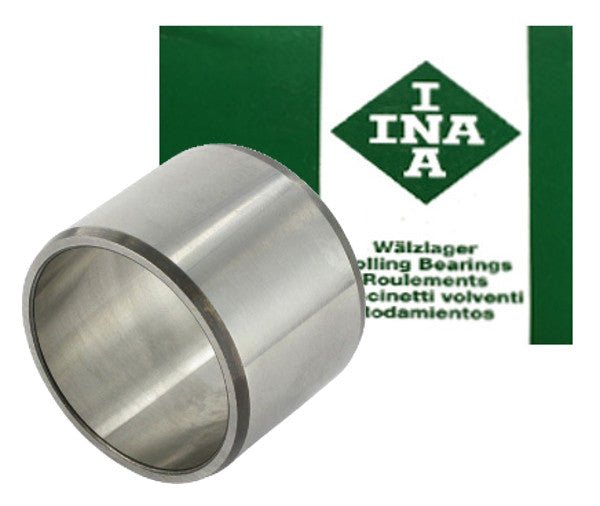

IR50X58X22 INA ring 50 x 58 mm

IR Inner Ring IR50-58-22 Quality: ⭐⭐⭐⭐⭐⭐ 6/6 Premium

Manufacturer: INA Germany

Schaeffler is a company that sets international standards. With employees who think about tomorrow... today. And with products that move the world. In short: a success story. Schaeffler combines comprehensive expertise and industry knowledge into a corporate brand that—as the parent company of renowned service and product brands such as LuK, INA, and FAG—stands for progress, innovation, and cutting-edge solutions like no other.

Product features

Category: Inner ring

Lubrication hole: No lubrication hole

Raceway: Precision machined, flattened front side

Surface: Directionally polished

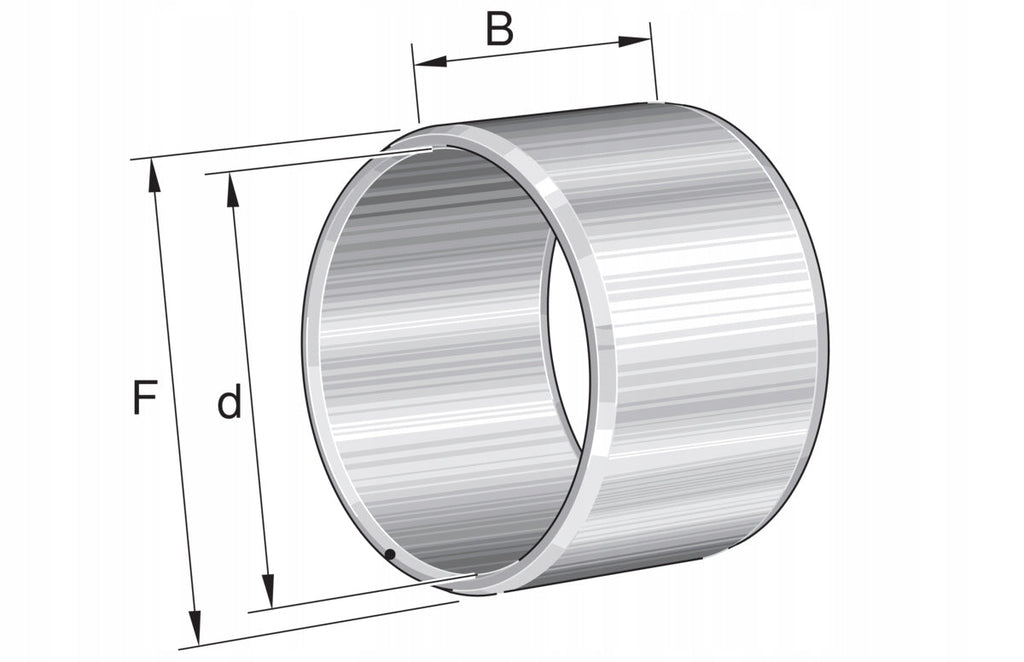

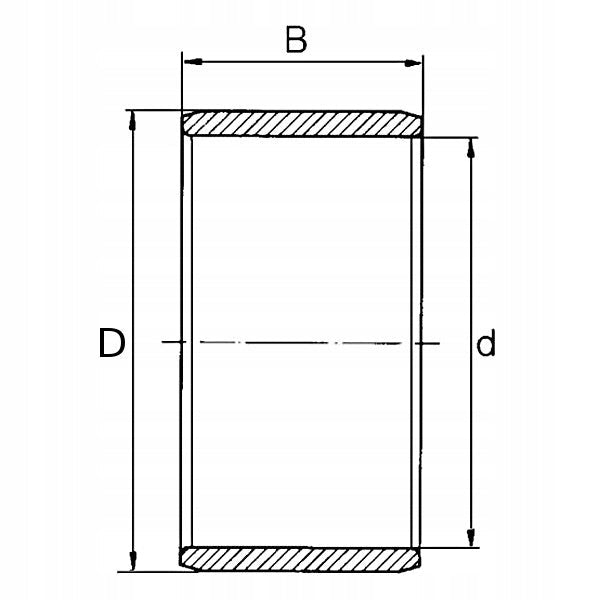

Dimensions:

• d = 50 mm
• D = 58 mm
• B = 22 mm

Characteristic:

Due to the separable structure of needle roller bearings, the inner rings are also manufactured separately, providing many additional design solutions.

They are used in needle roller and cage assemblies or thin-walled needle roller bearings where the shaft is not hardened and ground. In such cases, creating a needle roller bearing with an extended inner ring allows for greater axial displacement of the shaft relative to the housing than is possible with standard-width inner rings.
