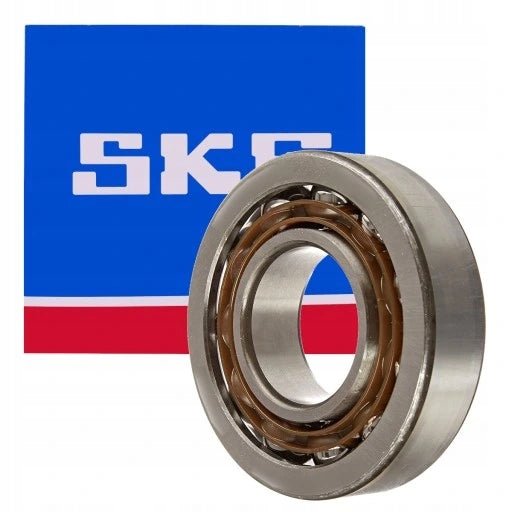

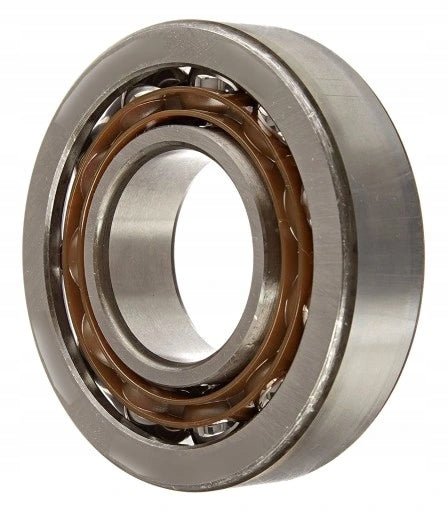

SKF 7209 BECBP Angular Contact Ball Bearing

SKF 7209 BECBP bearing

Quality: ⭐⭐⭐⭐⭐⭐ 6/6 Premium

Manufacturer: SKF Sweden

SKF is the world's largest manufacturer of rolling bearings, housings, and bearing greases. It operates 110 factories in 28 countries (including Poland). The company has its own research institutes and is introducing new standards and types of rolling bearings to the market.

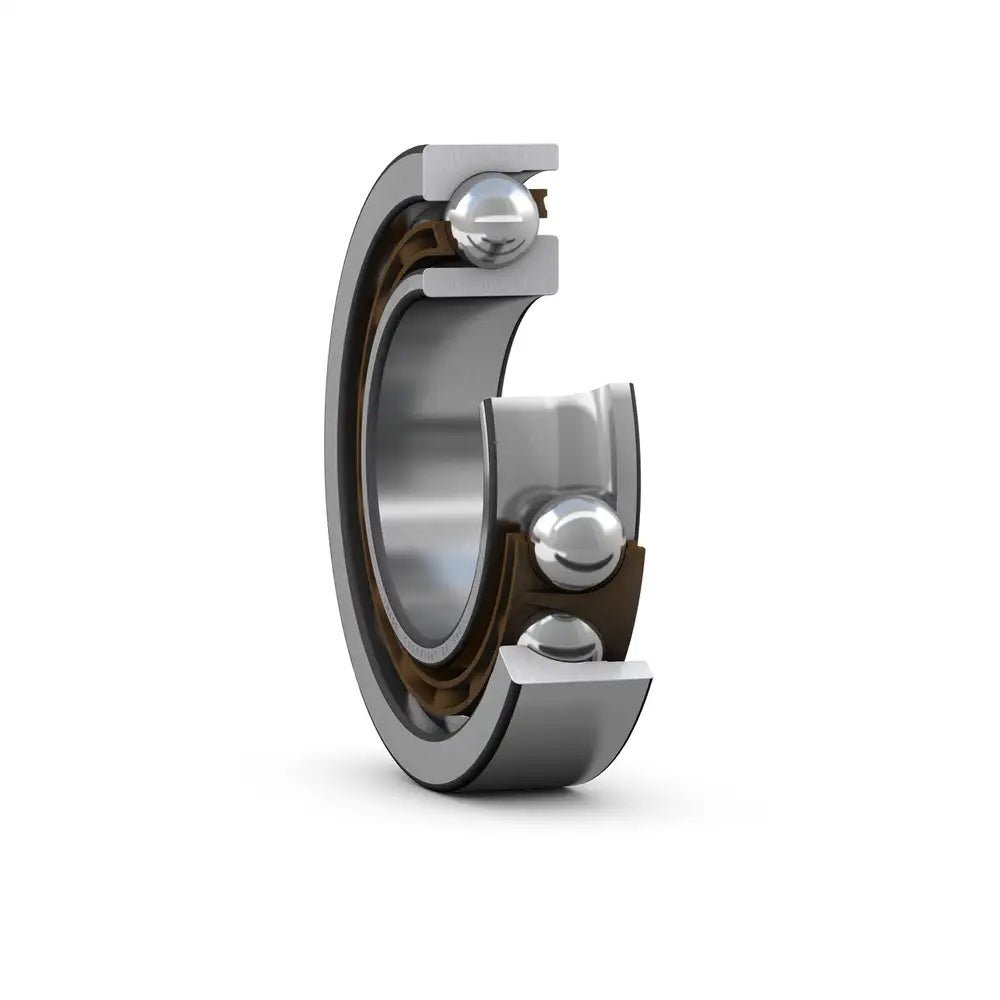

Single row angular contact ball bearing

Bearing with a contact angle of 40 degrees ( B )

Polymer basket

The pair of bearings has a small internal clearance in the (o) and (x) arrangement

Accuracy class P5 or ABEC5

Temperature range from -30 to +100°C

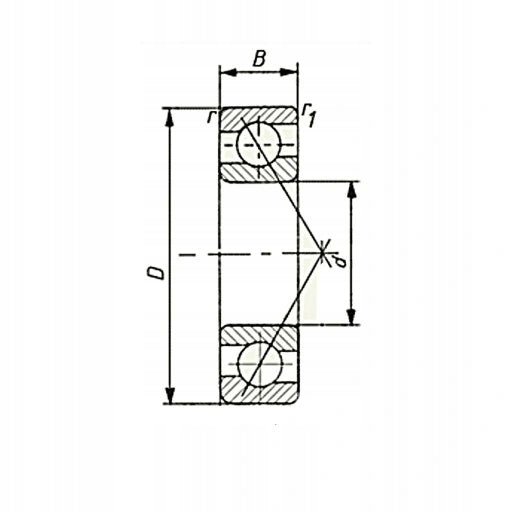

Dimensions:

d = 45 mm

D = 85 mm

B = 19 mm

Characteristic

Angular contact ball bearings are designed to accommodate combined loads, i.e. radial and axial.

The basic groups of these bearings include:

• single row angular contact ball bearings,
• single-row double-direction angular contact ball bearings
• double-row angular contact ball bearings

Single row angular contact ball bearings are usually manufactured with the following contact angles:

• 15° marked with the letter C,
• 25° marked with the letter A,
• 40° marked with the letter B.

Single row angular contact ball bearings can accommodate axial loads in one direction.

Bearings with a contact angle of 15 and 25° can operate at very high rotational speeds. These bearings are often used in duplex or multiple configurations.

Single row angular contact ball bearings with a contact angle of 40° are designed to accommodate relatively high axial loads.

Baskets

Single-row and double-row angular contact ball bearings manufactured in the basic accuracy class are supplied with pressed steel cages, while double-direction bearings are supplied with solid cages.

Single-row angular contact ball bearings intended for bearing machine tool spindles are supplied with massive cages, most often made of textolite.
